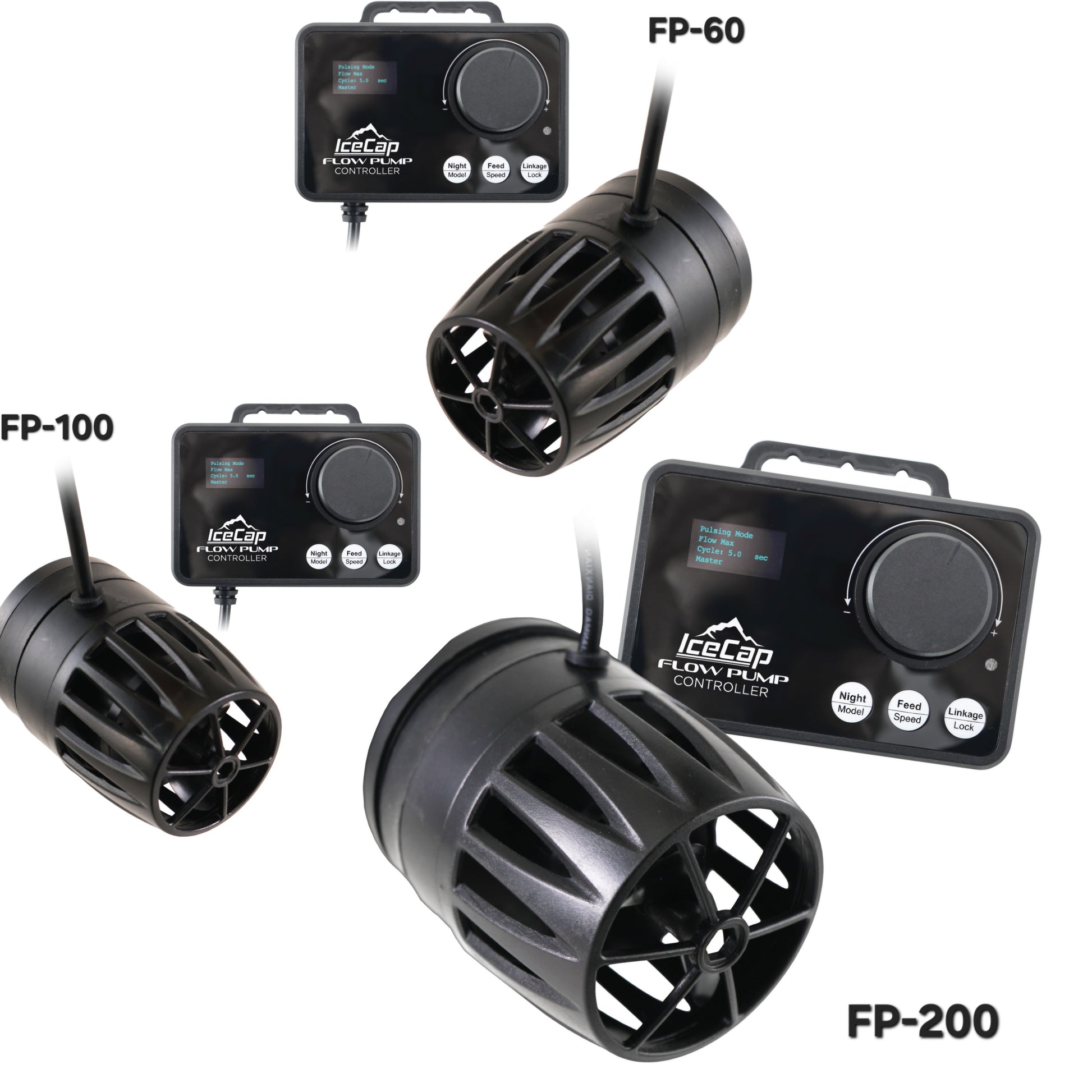

Aquarium Flow Pump

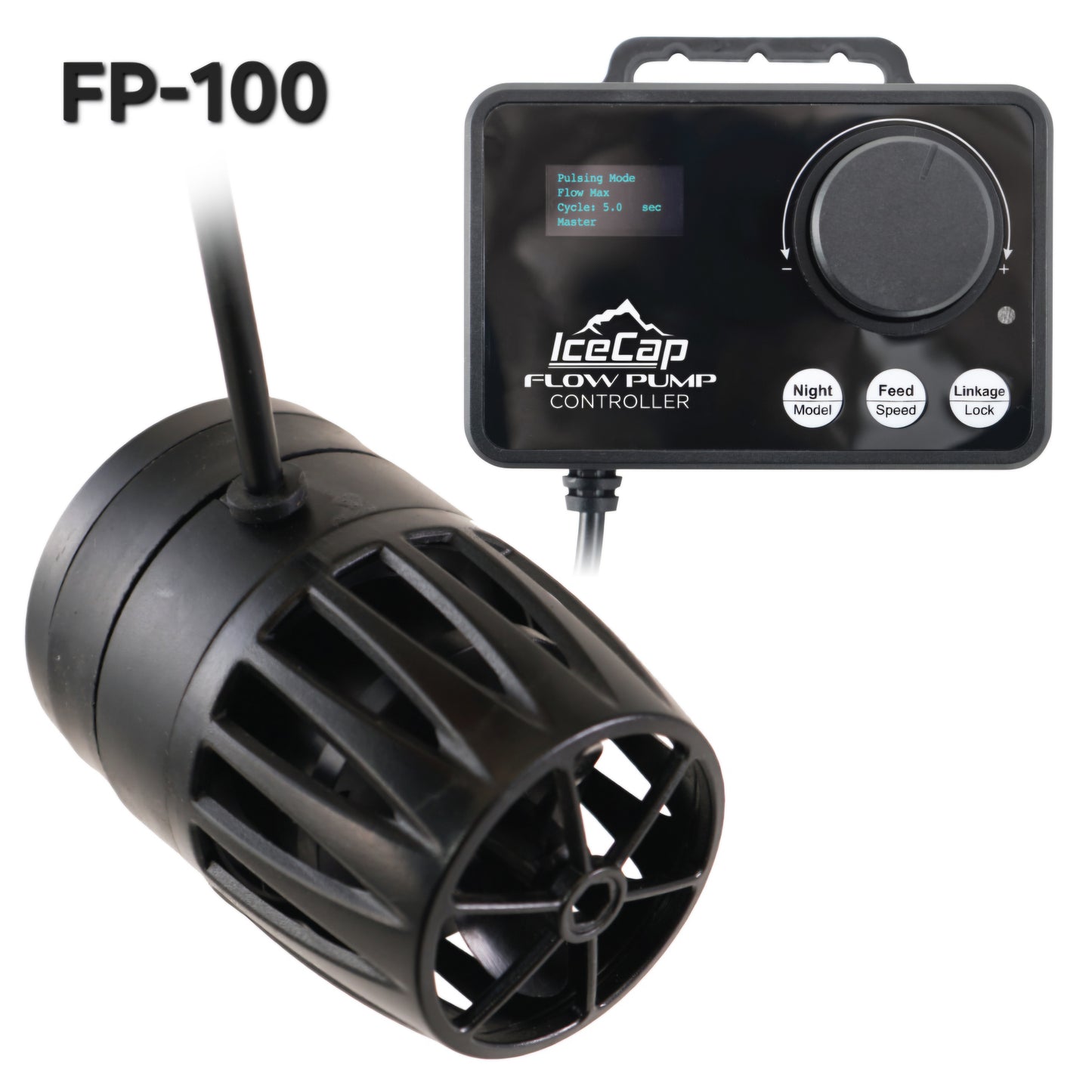

The IceCap FP's are a magnetic-mounted flow pump that can provide adjustable flow for both freshwater and marine aquariums. The flow pump controller includes five flow presets: Pulsing, Constant Flow, Stream, Random, and Cycle modes. Equipped with a controller lock setting, 20-minute feed mode, and a night mode that operates at the lowest flow rate when the controller senses low light levels.

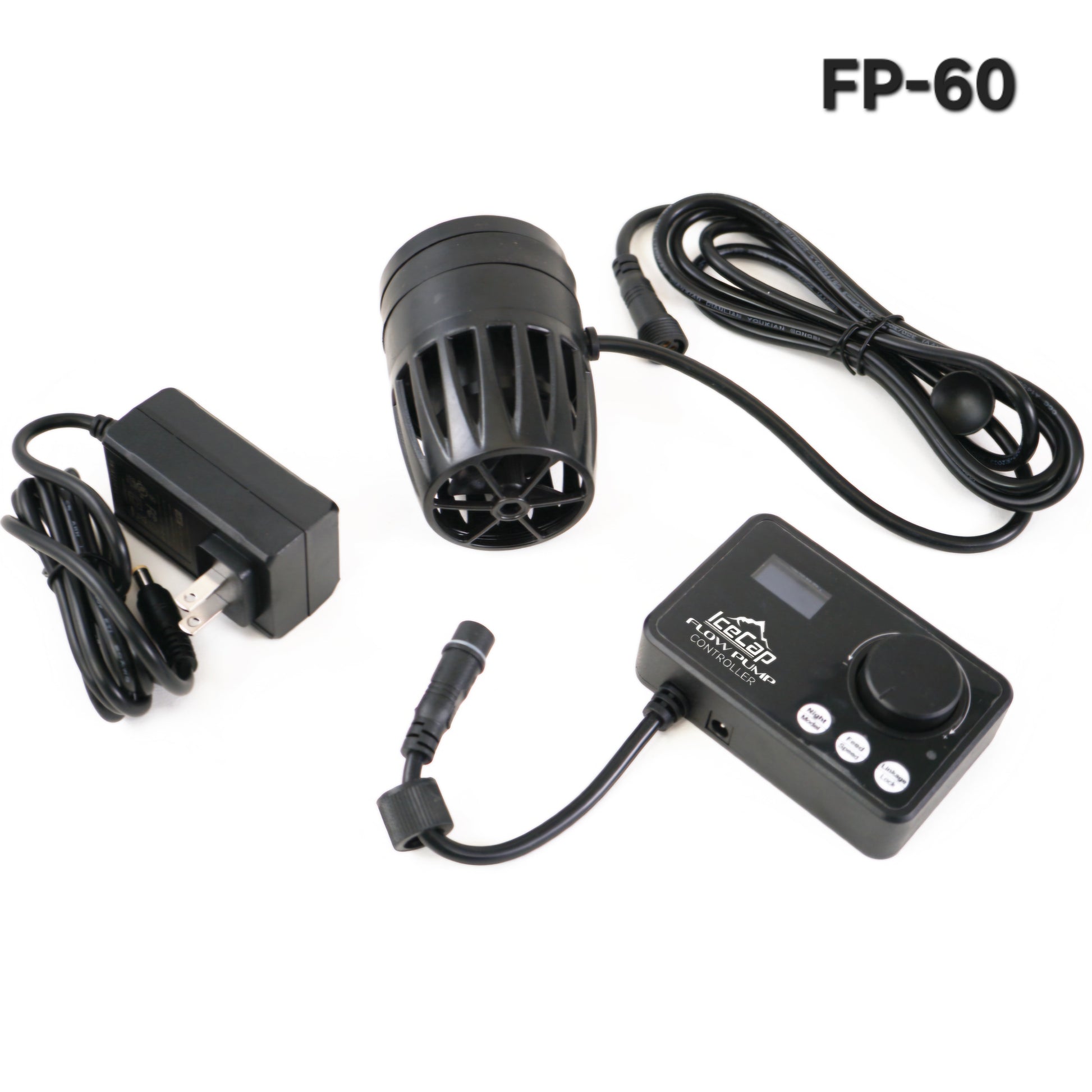

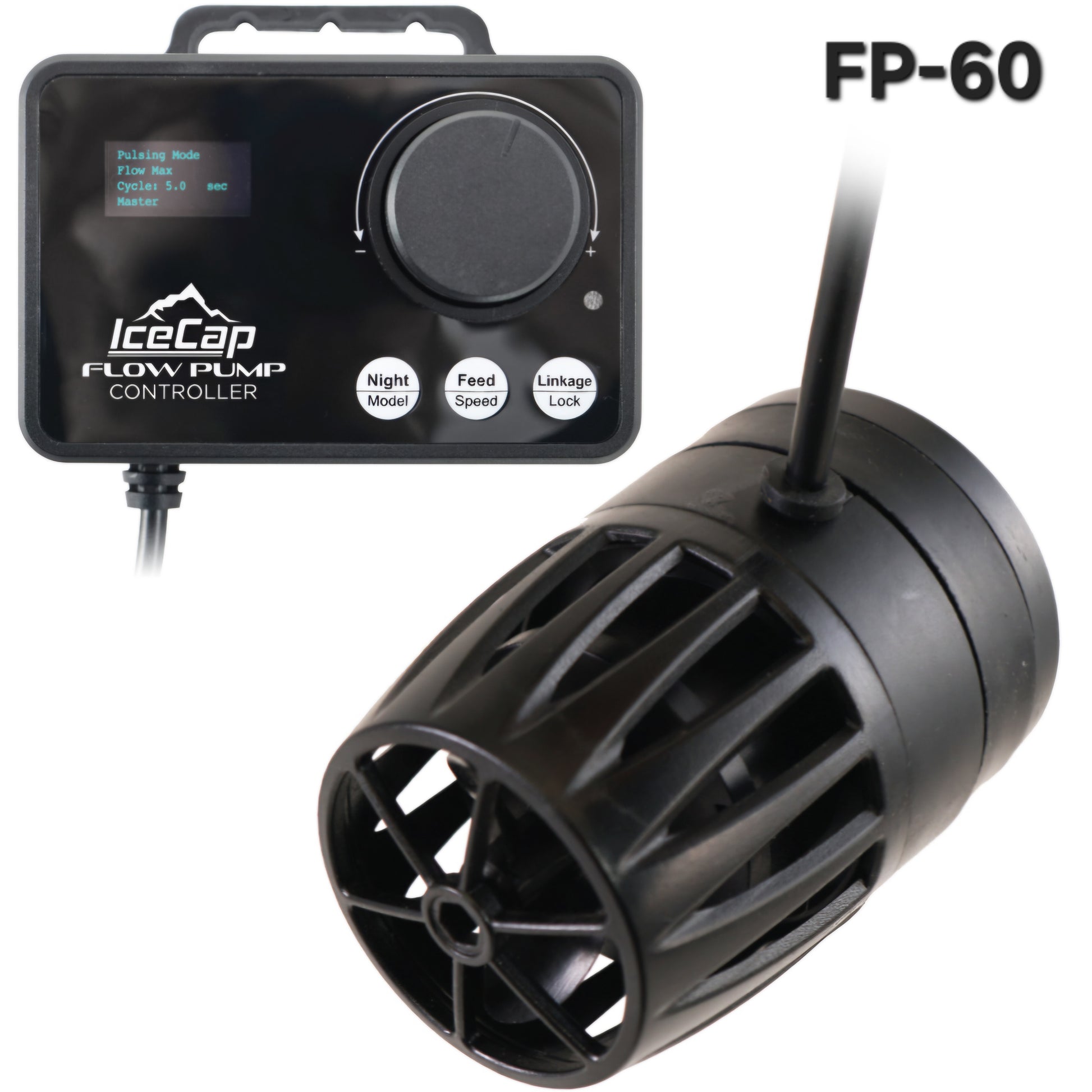

IceCap FP-60 Includes:

• Power Supply
• Pump with Wetside Mount
• Controller
• Dryside Magnet Mount
  User Guide -Click Here

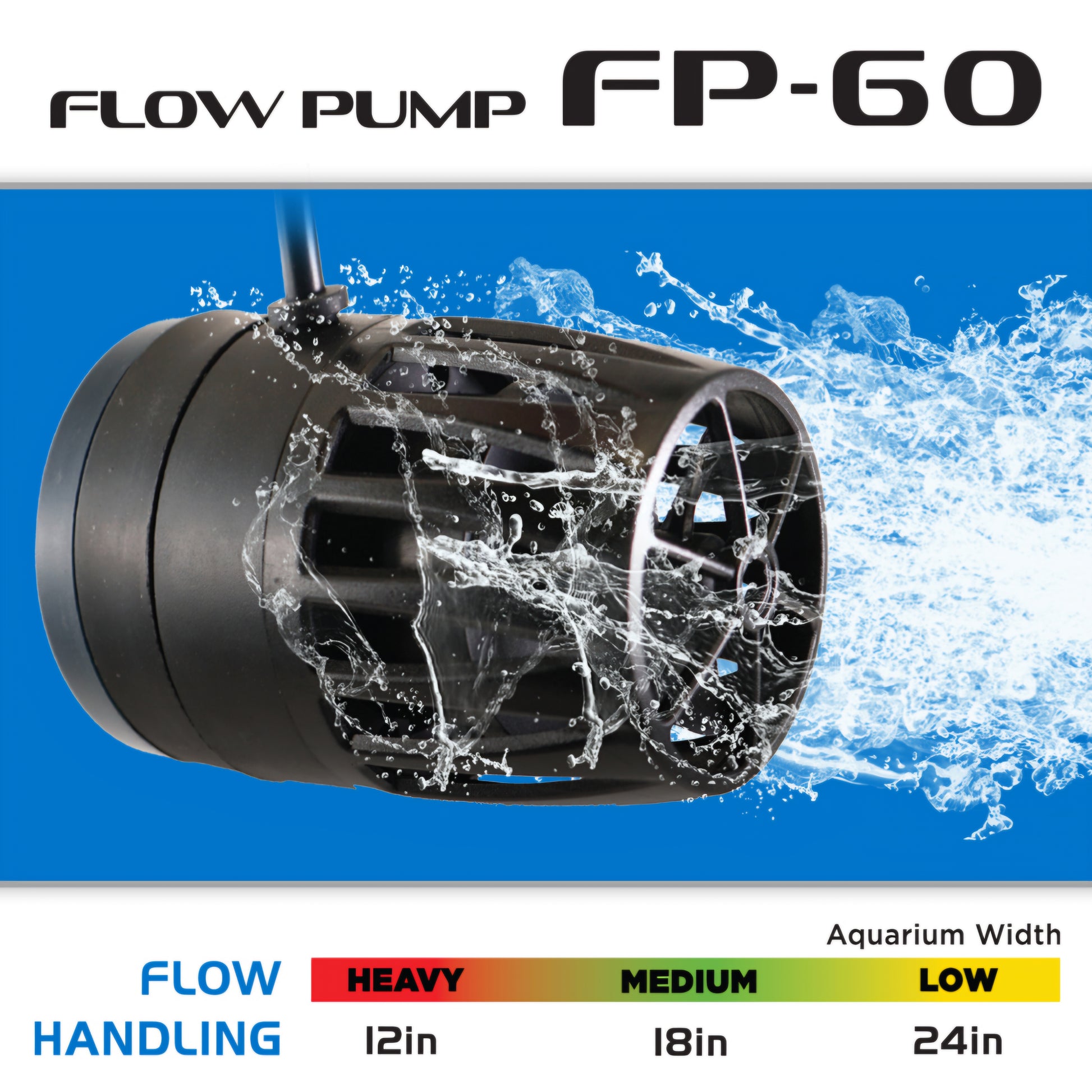

Provide up to 790gph of flow where you need it.

•

FP-60 Pump Specifications:

Max Flow: 790gph
Max Wattage: 10w
Suggested Aquarium Size: 10-25gal
Dimensions: 2.6 x 2 x 2in (includes dry magnet)

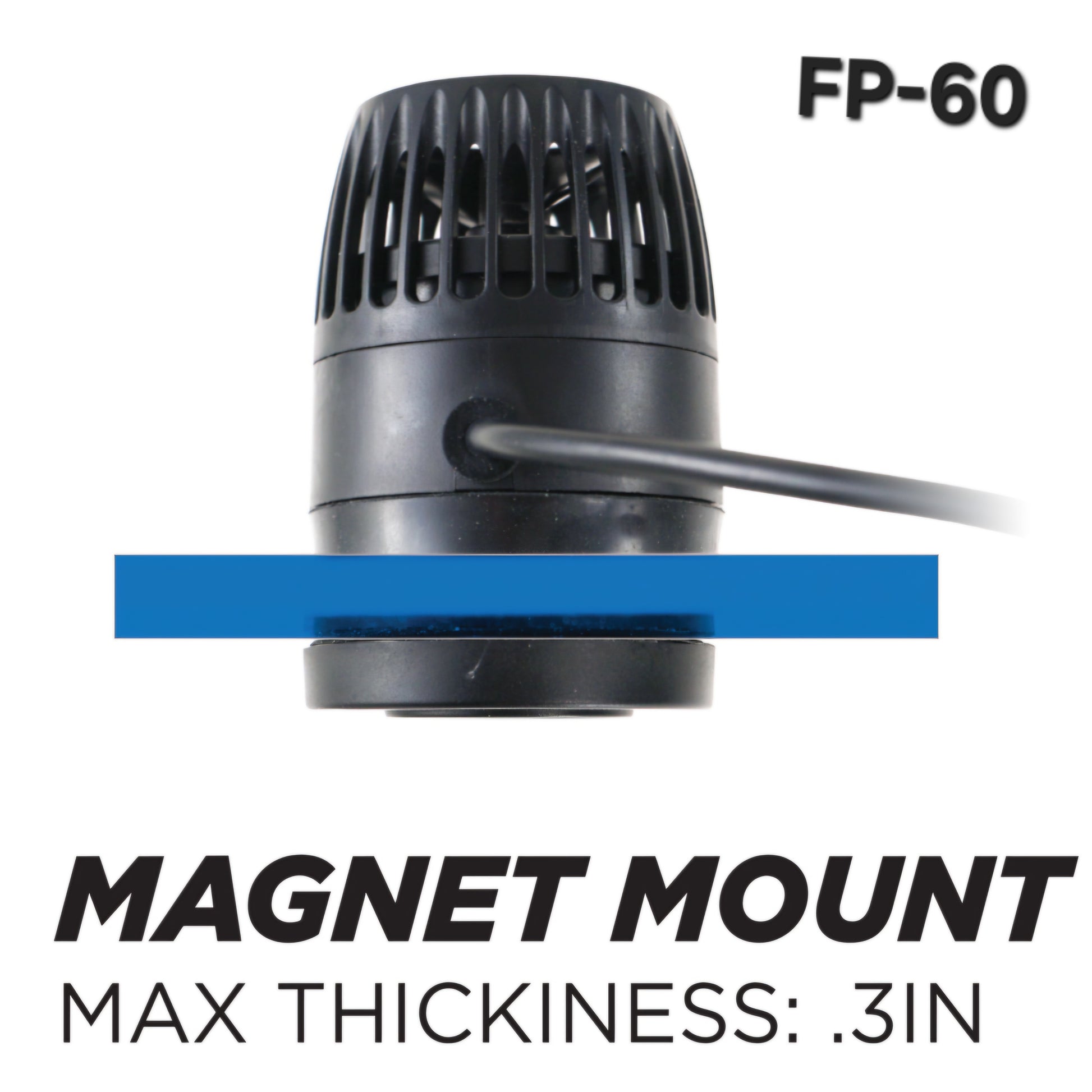

Max Mounting Thickness: .3in
Power Supply: 100-240v input, 24v/0.5a output

FP-60 Pump Speed/Power Level Parameters:

Speed Level	Voltage (A)	Power (W)	Flow Liters	Flow Gallons
1	0.111	1	700	180
2	0.131	2	850	224
3	0.154	3	1250	330
4	0.2	4	1450	380
5	0.25	5	1650	430
6	0.28	6	1850	480
7	0.31	7	2000	520
8	0.35	8	2200	570
9	0.423	9	2600	680
10	0.5	10	3000	790

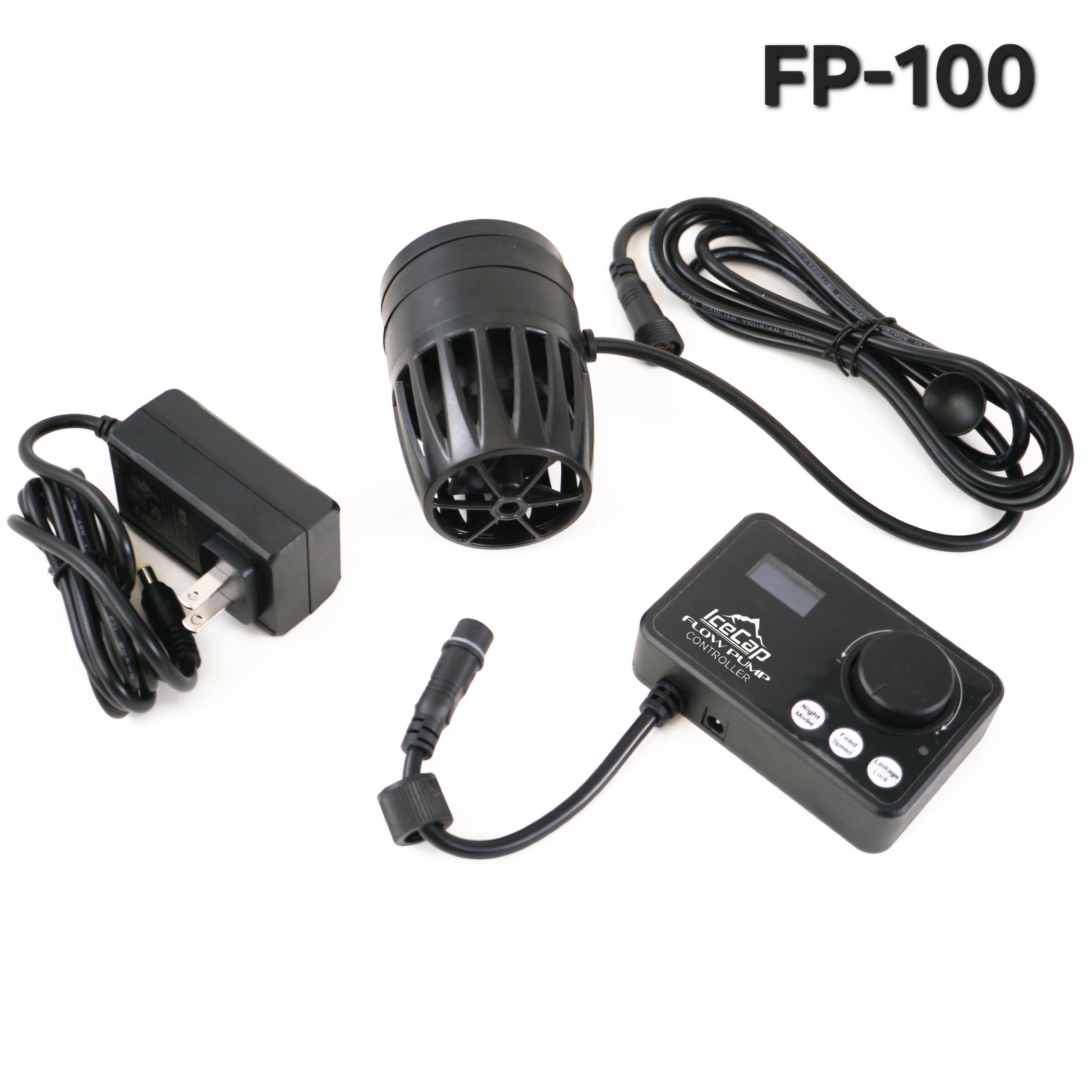

IceCap FP-100 Includes:

• Power Supply
• Pump with Wetside Mount
• Controller
• Dryside Magnet Mount
• User Guide -Click Here

FP-100 Pump Specifications:

Max Flow: 1585gph
Max Wattage: 20w
Suggested Aquarium Size: 20-80gal
Dimensions: 3.8 x 2.6 x 2.6in (includes dry magnet)

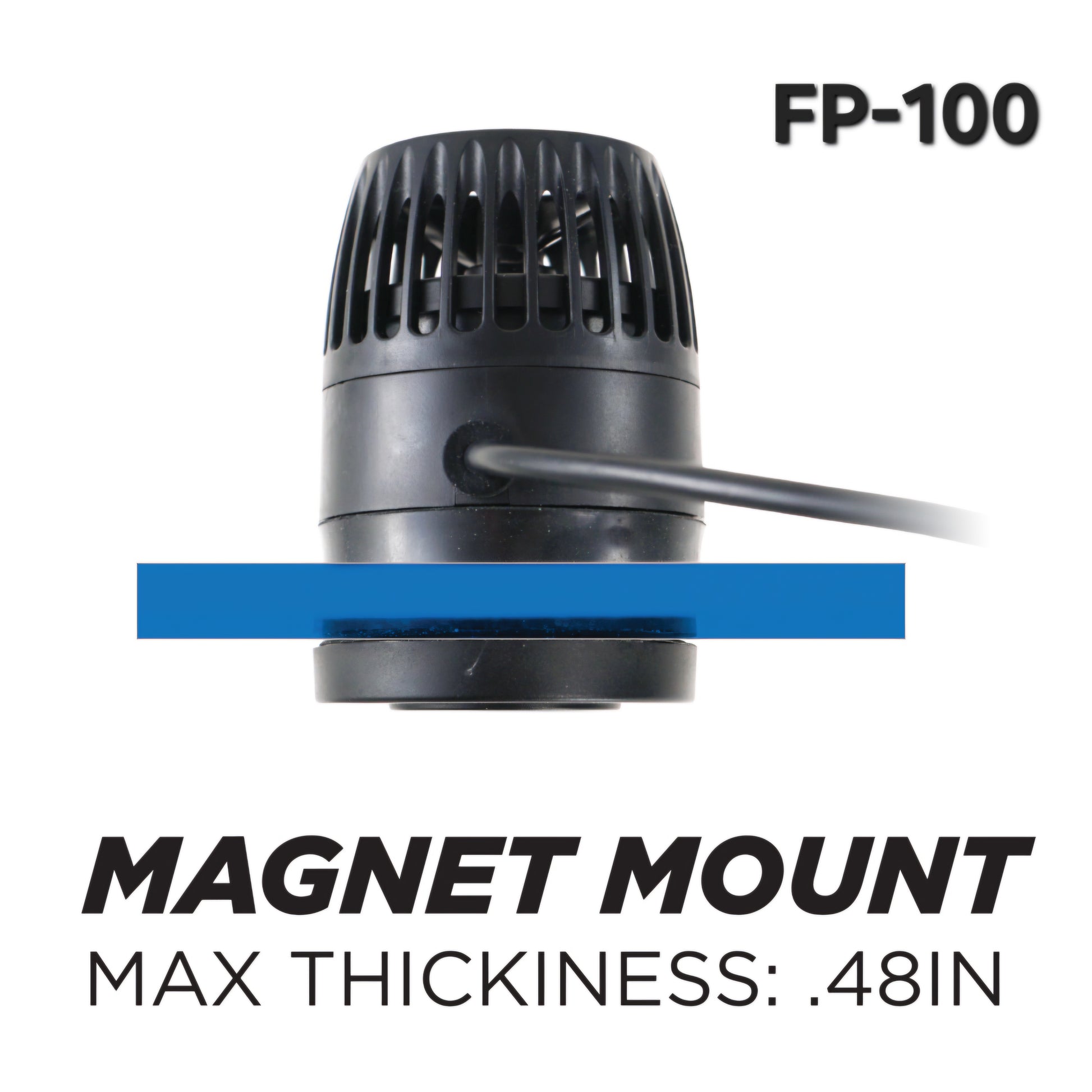

Max Mounting Thickness: .48in
Power Supply: 100-240v input, 24v/1a output

FP-100 Pump Speed/Power Level Parameters:

Speed	Voltage (A)	Power (W)	Flow Liters	Flow Gallons
1	0.058	5	1000	264
2	0.093	3.5	1250	330
3	0.135	4.5	1450	383
4	0.181	5.5	1900	502
5	0.234	7.5	2550	674
6	0.294	9	3150	832
7	0.359	10	3650	964
8	0.43	15	4550	1202
9	0.51	17	5260	1309
10	0.63	20	6000	1585

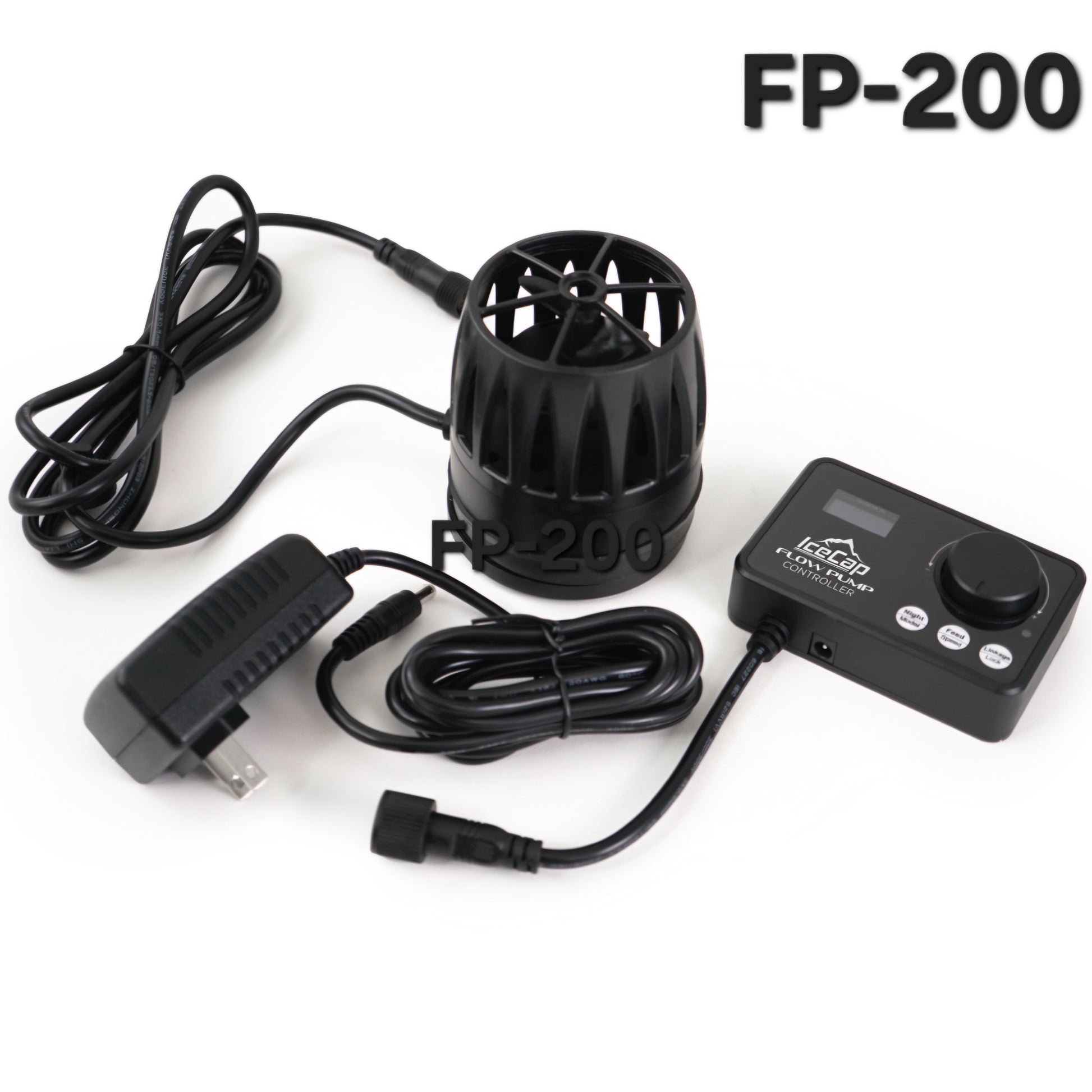

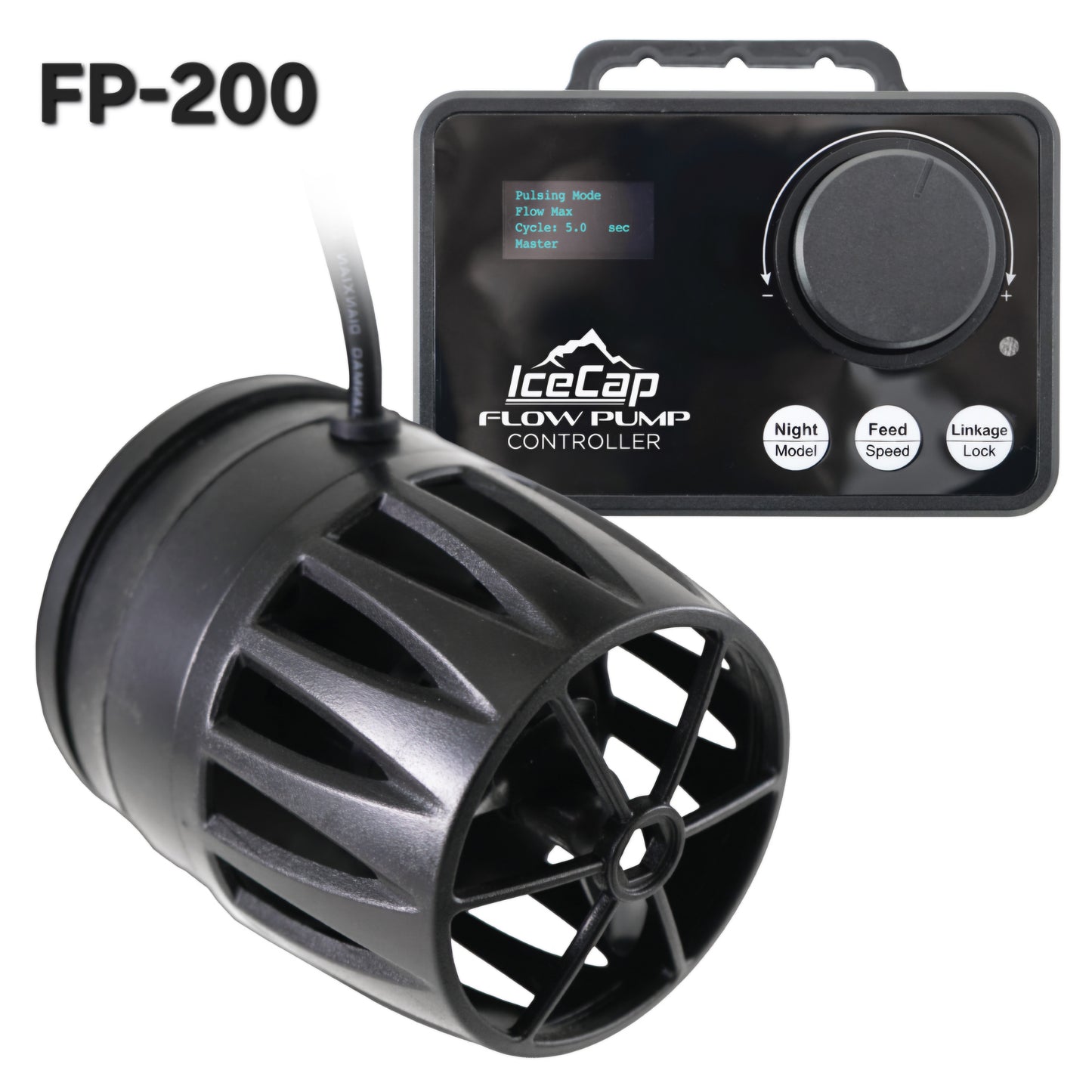

IceCap FP-200 Includes:

• Power Supply
• Pump with Wetside Mount
• Controller
• Dryside Magnet Mount
  User Guide -Click Here

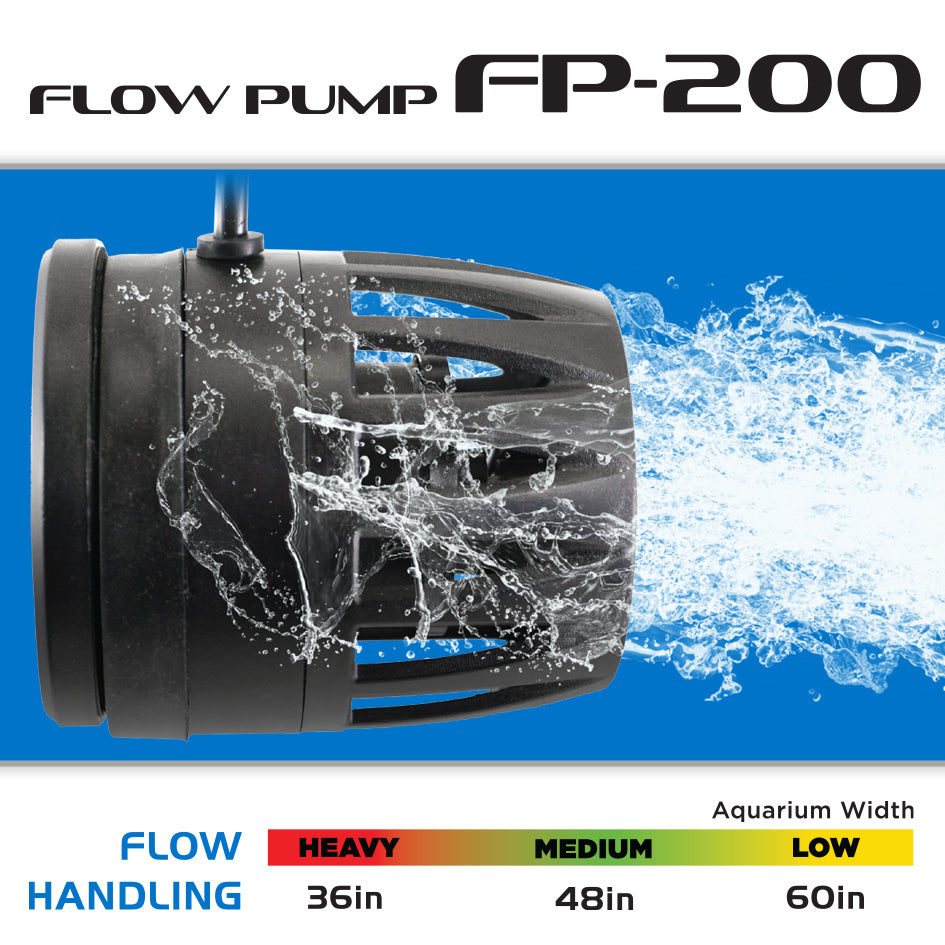

FP-200 Pump Specifications:

Max Flow: 4755gph
Max Wattage: 35w
Suggested Aquarium Size: 22-105gal
Dimensions: 4 x 3.3 x 3.3in (includes dry magnet)

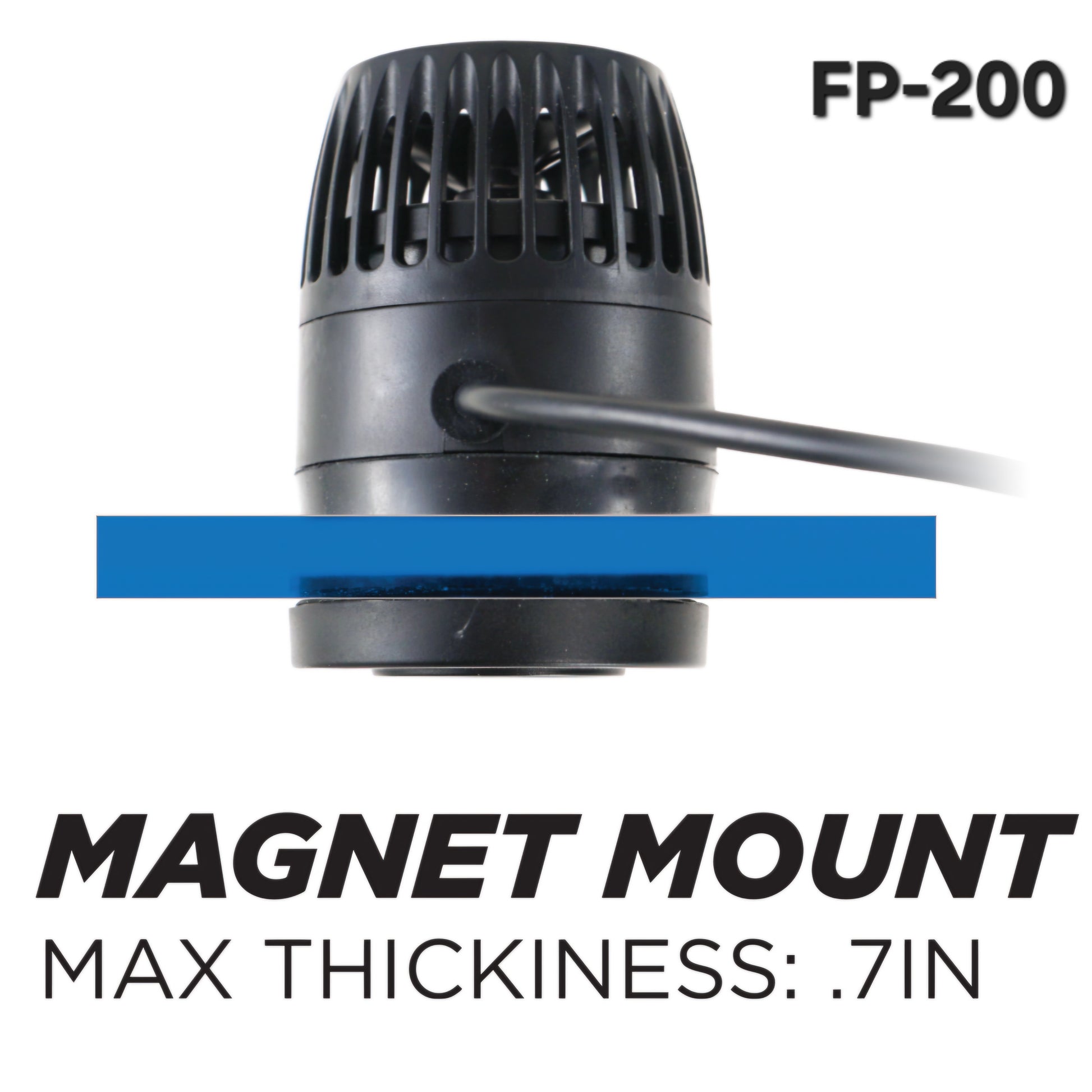

Max Mounting Thickness: .7in
Power Supply: 100-240v input, 24v/1.75a output

FP-200 Pump Speed/Power Level Parameters:

Speed	Voltage (A)	Power (W)	Flow Liters	Flow Gallons
1	0.152	8	3000	792
2	0.222	10	3620	956
3	0.303	12	4650	1228
4	0.399	15	6250	1651
5	0.5	20	7150	1889
6	0.62	22	8500	2245
7	0.75	24	10000	2642
8	0.89	25	12500	3302
9	1.06	30	14600	3857
10	1.25	35	18000	4755
